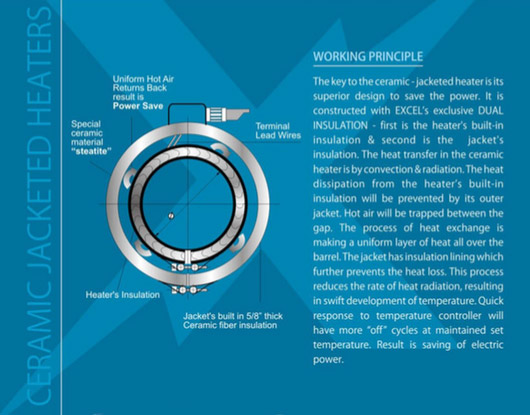

WORKING PRINICPLE
The key to the ceramic-jacketed heater is its superior design to save the power. It is constructed with EXCEL’s exclusive DUAL INSULATION – first is the heater’s built-in insulation & second is the jacket’s insulation. The heat transfer in the ceramic heater is by convection & radiation. The heat dissipation from the heater’s built-in insulation will be prevented by its outer jacket. Hot air will be trapped between the gap. The process of heat exchange is making a uniform layer of heat all over the barrel. The jacket has insulation lining which further prevents the heat loss. This process reduces the rate of heat radiation, resulting in swift development of temperature. Quick response to temperature controller will have more “off” cycles at maintained set temperature. Result is saving of electric power.
Uniform Hot Air Returns Back result is Power Save
- Special Ceramic Material “steatite”
- Terminal Lead Wires
- Heater’s Insulation
- Jacket’s built in 5/8” thick Ceramic Fiber Insulation
- Reduce Heat Loss
- Maximize operator Comfort
- Conserve Energy
- Reduce overall Operation Cost
