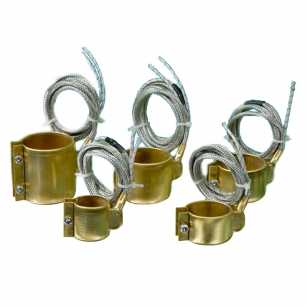

Sealed Brass Nozzle Heaters are the result of the high technology & are completely proof to all external factors such as melted plastics, oil, gas etc.
Sealed Brass Nozzle heaters are very sturdy & the high watt density per square centimeter provides the required working temperature with a fast and safe means.
During manufacturing process, the heaters are subjected to very high pressure that gives them high insulation, excellent thermal exchange, lack of internal voids, perfect smooth contact area for optimum and uniform heat transfer to every point of nozzle.
Minimum material waste
No freeze off of the plastic
Technical Specifications
|
Sheath Material |
Brass tubular sheath |
|
Heating Elements |
Ni Cr 80:20 |
|
Volt Range |
220 V to 240 V |
|
Watt Density |
Up to 6 W / cm² |
|
Clamping |
M4 Screw Clamping |
|
Minimum ID |
30 mm |
|
Minimum Length |
30 mm |
