Sheath Material
|
SS304
|
|
Insulation Material
|
High Purity Mgo
|
|
Heating Elements
|
NiCr 80:20
|
|
Voltage Range
|
220 V to 240 V
|
|
Power Rating
|
168 W to 300 W
|
|
Power Tolerance
|
± 5%
|
|
High Voltage Strength
|
Min. 800V-AC
|
|
Insulation Resistance
|
≥ 5Ω
|
|
Sheath Temperature of Heating Element
|
Max. 750˚C
|
|
Variation
|
Round-1mm, 1.5mm & 1.8mm &
Rectangular -1.3 x 2.1
|
|
Clamping
|
Screw Clamp & |Axial Camp
|
|
Unheated Length
|
5” & 7”
|

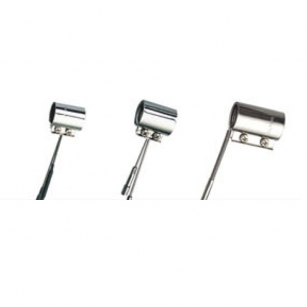

STANDARD READY STOCK HEATERS OF ø1.8
|
Inner Diameter(mm)
|
Outer Diameter(mm)
|
Length
L (mm)
|
Volt (V)
|
Watt (W)
|
Lead Length
|
|
19.1
|
23.5
|
30.5
|
240
|
268
|
1000mm
|
|
19.1
|
23.5
|
30.5
|
240
|
149
|
1000mm
|
|
22.2
|
26.6
|
30.5
|
240
|
268
|
1000mm
|
For faster heat up time we can offer similar heaters with a flat cross section of 1.3mm x 2.1mm. The cold leads have a diameter of l.8mm whereas the heated area has a flat cross section for better contact area and faster heat transfer. Standard sizes & both types of clamping i.e. screw & axial clamp available are mentioned below.
STANDARD READY STOCK HEATERS OF RECTANGUALR SECTION 1.3 X 2.1
|
Inner Diameter (mm)
|
Outer Diameter (mm)
|
Length
L (mm)
|
Volt (V)
|
Watt (W)
|
Lead Length
|
|
19.1
|
23.5
|
30.5
|
240
|
268
|
1000mm
|
|
19.1
|
23.5
|
30.5
|
240
|
149
|
1000mm
|
